Compound Vertical Seismometer

Mercer University Physics

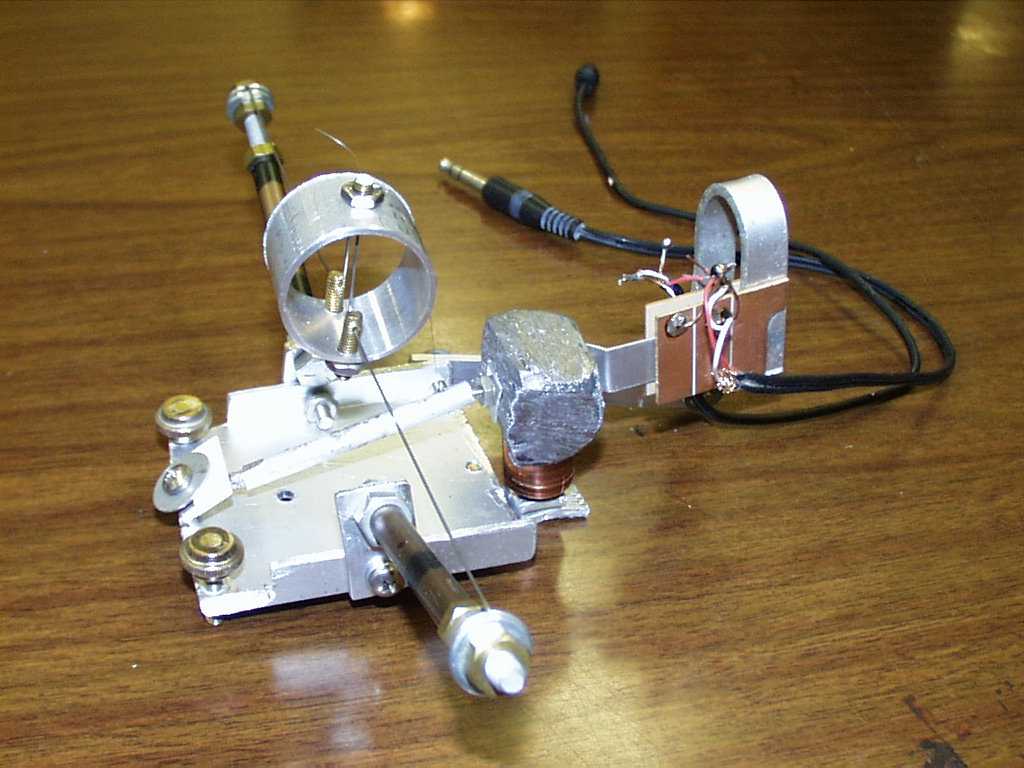

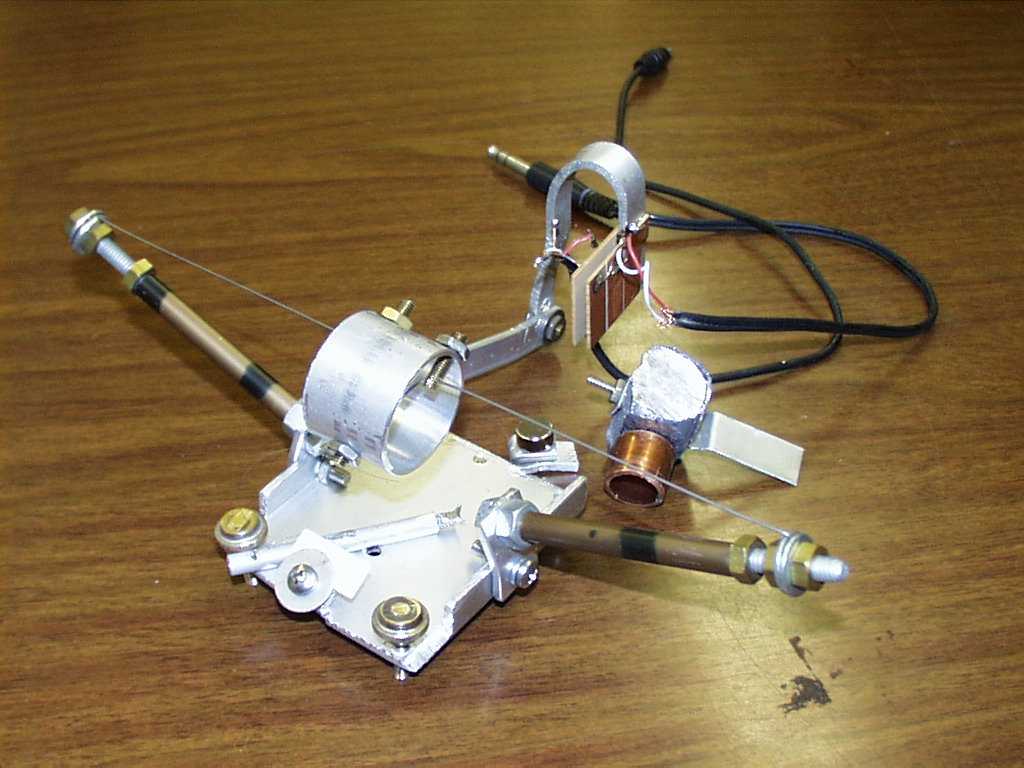

Shown are pictures of a CVS prototype completed in May 2003. (In the bottom photo the unit has been dissassembled).  The diameter of the eccentric

is around 3 to 4 cm.
